30L Rotary LGCD-55KW Screw Electric Air Compressor with Intelligent Control and Direct Drive

Shanghai Rotorcomp Screw Compressor Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

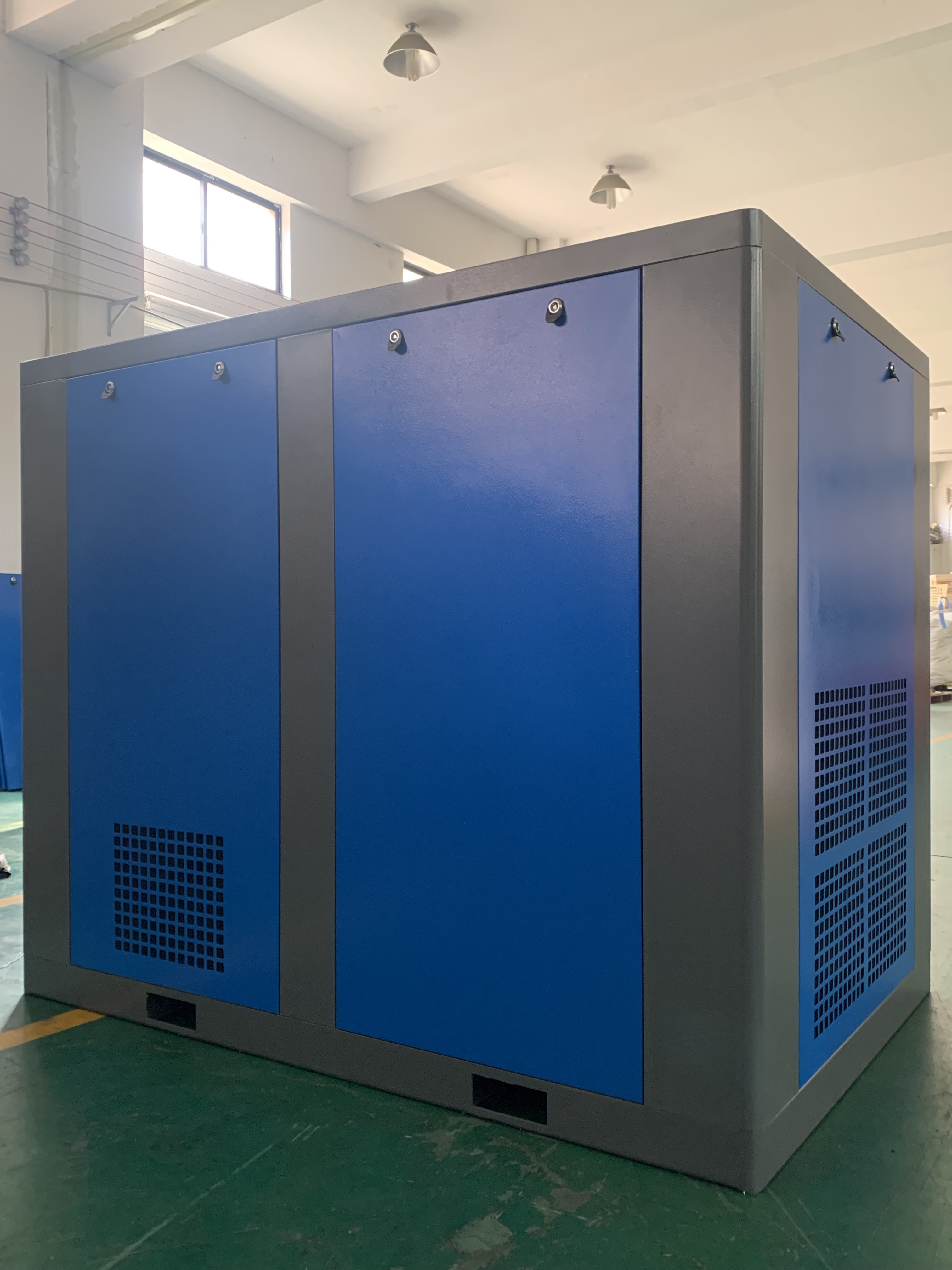

30L Rotary LGCD-55KW Screw Electric Air Compressor with Intelligent Control and Direct Drive

  • 1
  • 2
  • 3

Brand Name : shanghai rotorcomp

Model Number : LGCD-55kw

Place of Origin : CHINA

Certification : ISO,CE,TUV,

MOQ : 1

Price : negotiable

Packaging Details : wooden case

Delivery Time : 5-15 working days

Payment Terms : TT,LC,D/A,D/P,Western union

Supply Ability : 1,000 units per month

Type : Rotary Screw

Lubricating oil volume : 55L

Inlet pressure : Atmospheric Pressure

Product Name : Air Cooling Compressor

Driven type : Direct Driven

Max.working pressure : 0.7/0.8/1.0/1.3 MPA

Control mode : Intelligent Controller

Voltage : 380V

Contact Now

Product Description:

Welcome to our official product page for the LGCD-55KW Air Cooling Screw Compressor. This state-of-the-art compressor combines cutting-edge technology with robust construction to deliver unparalleled efficiency and reliability. Designed for a wide range of industrial applications, the LGCD-55KW Air Cooling Screw Compressor is engineered to meet the most demanding requirements while ensuring minimal operational costs.



One of the key features of the Air Cooling Compressor is its air-cooling system. This helps to regulate the temperature of the compressor, ensuring that it operates efficiently and effectively. The intelligent controller also plays a crucial role in maintaining the performance of the compressor, allowing you to monitor and adjust settings as needed.



The starting method of the Air Cooling Compressor is also customizable. You can choose between Direct On Line or Star Delta, depending on your requirements. This feature makes the compressor more adaptable and versatile, allowing you to use it in a variety of settings.

The lubricated screw compressor is designed to operate with maximum efficiency, providing a steady stream of compressed air to power your industrial equipment. The rotary-screw air compressor is built to last, with a sturdy construction that can withstand heavy use over time. This makes it a reliable and cost-effective investment for any business.



In summary, the Air Cooling Compressor is a high-quality lubricated screw compressor that is ideal for a wide range of industrial applications. With a durable construction, air-cooling system, and intelligent controller, it can provide a constant supply of compressed air while maintaining peak performance. Whether you need a compressor for a large manufacturing facility or a small workshop, the Air Cooling Compressor is a great choice.



Features and Advantages:

  • Energy Efficiency: With VSD technology and an advanced cooling system, the LGCD-55KW Air Cooling Screw Compressor significantly reduces energy consumption, lowering your operational costs.
  • Reliability: Engineered with precision and built to last, this compressor offers minimal downtime and extended service life, ensuring continuous and reliable operation.
  • Ease of Use: The intuitive touch-screen interface and advanced control system make it easy to monitor and adjust settings, providing seamless operation and maximum efficiency.
  • Customization: With a range of customization options, the LGCD-55KW Air Cooling Screw Compressor can be tailored to suit your specific needs, ensuring optimal performance in your application.
  • Support and Service: As a leading manufacturer, we offer comprehensive support and service, ensuring that your LGCD-55KW Air Cooling Screw Compressor remains in optimal condition throughout its lifespan.



30L Rotary LGCD-55KW Screw Electric Air Compressor with Intelligent Control and Direct Drive

Technical Parameters:

55KW air cooling compressor parameters



ITEM UNIT MODEL
LGCD-55
Free air delivery m3/min 10.50 10.00 9.00 7.80
Max. working pressure MPa 0.7 0.8 1.0 1.3
Compressor type   Oil inject screw compressor
Cooling type   Air cooling
Driven type   Direct driven
Inlet status Temperature ≤45
Pressure MPa Atmospheric pressure
Relative humidity   ≤90%
Noise Level dB(A) ≤76
Residual oil content ppm ≤2
Drive rotor speed rpm 2970
Compressed air outlet temperature Ambient temperature+10
Cooling air flow m3/hr 10200
Fan motor power kW 1.5
Control mode   Intelligent controller
Safety valve set pressure MPa 0.77 0.88 1.10 1.43
Lubricating oil volume L 50
Lubricating oil brand   ROTORCOMP
Compressed air outlet connection   G2
Dimension L mm 1900
W mm 1250
H mm 1560
Net Weight kg 1200
Motor Model   Y2225M-2
Speed rpm 2970
Rated Power KW 55
Service factor   1.2
Protection type   IP55
Insulation class   IE3
Startup mode   ʏ-Δ starting
Voltage V 380(Special on request)
Frequency Hz 50(Special on request)
Rated current A 103
Weight of motor kg 387


This is a Rotary-screw air Compressor with air cooling.



Why Choose This Machine:

In today's fast-paced industrial environment, reliability and efficiency are paramount. The LGCD-55KW Air Cooling Screw Compressor is designed to provide a seamless and cost-effective solution for air compression needs. Whether you're in the manufacturing, automotive, or any other industry that relies on compressed air, this machine is tailored to enhance your operational efficiency and reduce energy consumption.



In conclusion, the LGCD-55KW Air Cooling Screw Compressor is a reliable, efficient, and versatile solution for your air compression needs. With its advanced features and customization options, this machine is designed to enhance your operational efficiency and reduce energy consumption. Contact us today to learn more about how the LGCD-55KW Air Cooling Screw Compressor can benefit your business.



Support and Services:

The Screw Air Compressor product is designed to provide efficient and reliable compressed air for various industrial applications. Our technical support team is available to assist you with any questions or concerns you may have about the product.

We offer a range of services to ensure that your Screw Air Compressor is running at peak performance, including:

  • Installation and commissioning
  • Preventative maintenance programs
  • Emergency repair services
  • System upgrades and retrofits

Our team of experienced technicians and engineers are dedicated to providing exceptional support and service to our customers. Contact us today to learn more about our Screw Air Compressor technical support and services.
