Loss Free 75 Hp Rotary Screw Air Compressor 55Kw Electronic 35% Energy Saving

Product Categories
Shanghai Rotorcomp Screw Compressor Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

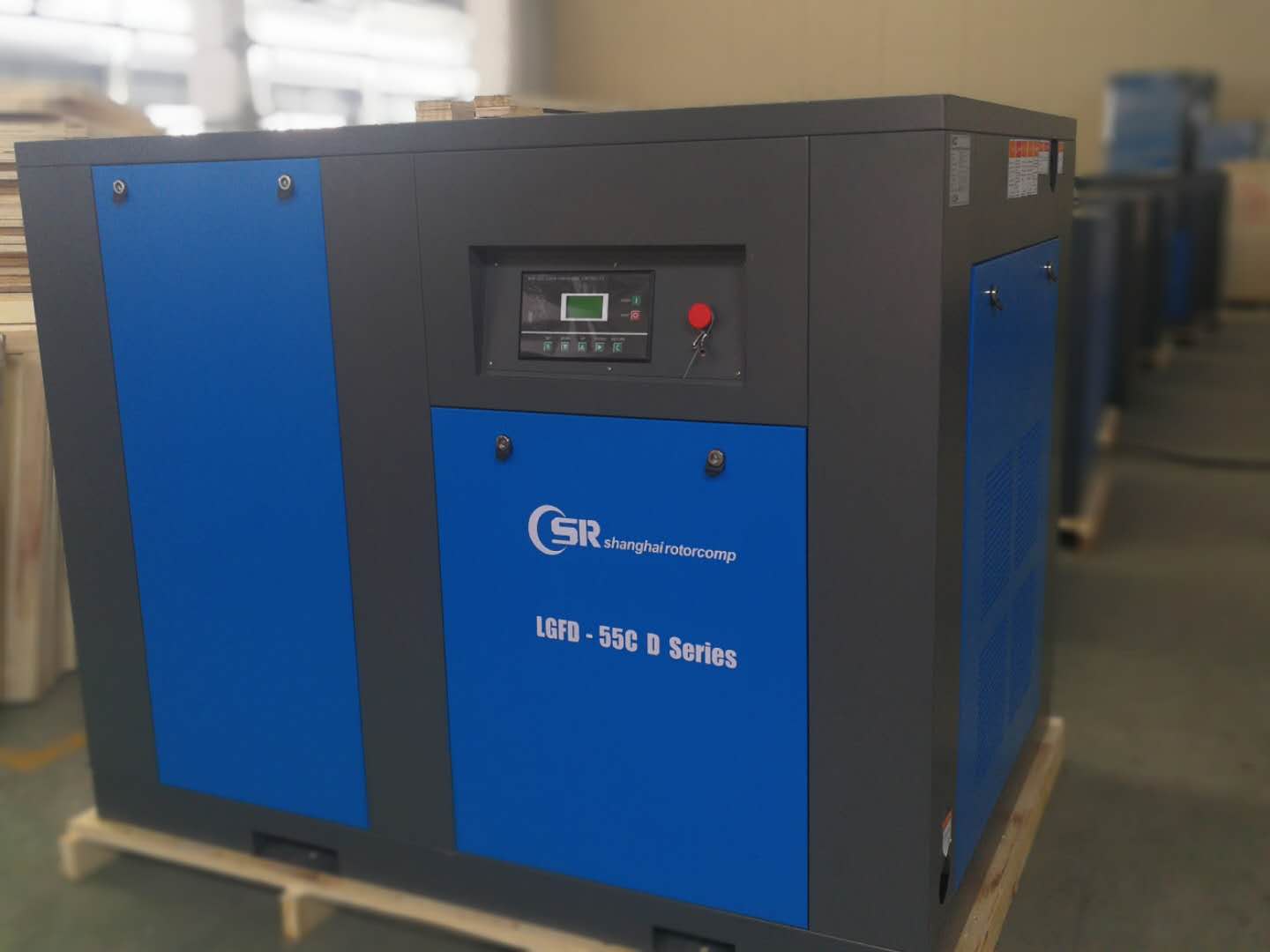

Loss Free 75 Hp Rotary Screw Air Compressor 55Kw Electronic 35% Energy Saving

  • 1
  • 2
  • 3

Brand Name : Shanghai Rotorcomp

Model Number : LGCD screw compressor

Certification : ISO.TUV,CE,GS

Place of Origin : Germany

MOQ : Min.:1set

Price : Negotiable

Payment Terms : Western Union, T/T, L/C, D/P, D/A

Supply Ability : 3,000 sets/per month

Delivery Time : 15-20 working days

Packaging Details : Exported Wooden Package

Warranty : 2 Years

Air Rotors : Made in Germany

Advanced Design : Design in Germany

cooling system : More than 20-25% air cooling performance

Rated Power : 55Kw/75Hp

driving system : Coupling

Cooling air flow : 10200m3/hr

Working Pressure : 7-13Bar

Dimension : 1750*1200*1500mm

Weight : 1180Kg

Certificates : CE,ISO,TUV

Contact Now

35% Energy Saving Air Screw Compressor 55Kw 75Hp TUV,CE,ISO certificates in cheaper price!



Advantages of Energy Saving Air Screw Compressor:

1. Coupling driving system
2. Highly competitive price
3. Economic running costs
4. ISO, GA, SGS certificates

Energy Saving Air Screw Compressor features:




1 Drives and electrics

The almost loss-free power transmission guarantees reliable, high-performance compressor operation. The regular maintenance requirement is reduced to lubrication of the motor. All the electronic components are brand products of leading
manufacturers. rives and electrics.



Loss Free 75 Hp Rotary Screw Air Compressor 55Kw Electronic 35% Energy Saving

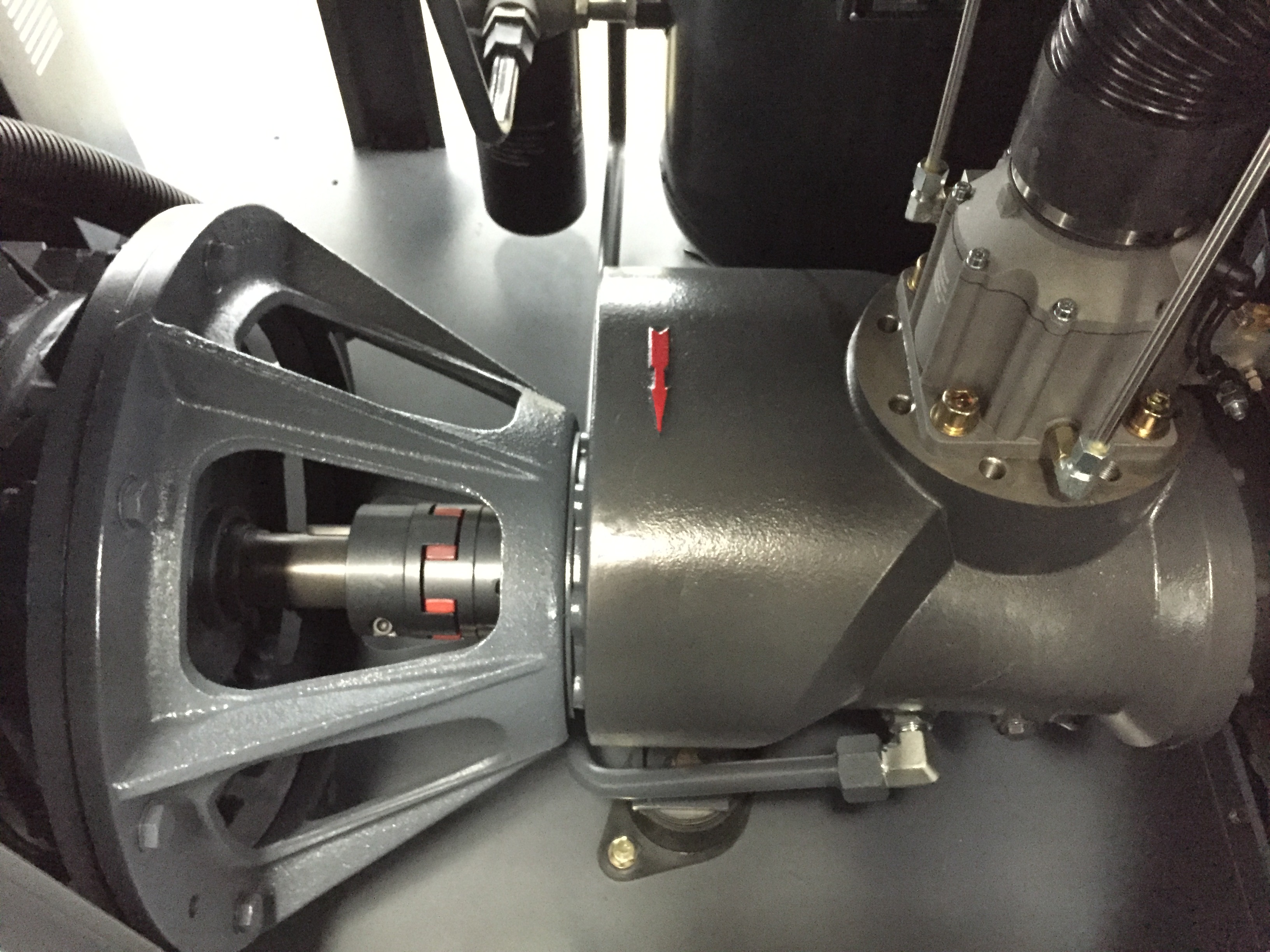

2 Air end block – reliable centrepiece – Design in Germany

The centrepiece of Direct-driven Screw compressor is the air end, which is constructed and manufactured with the most modern production methods in China. The optimal air end for your compressor can be used on a modulating basis. In frequency-controlled units, where the operating pressure changes, adjustments can also be made on the frequency controller to optimally adjust the speed of the compressor to the compressor performance.



Loss Free 75 Hp Rotary Screw Air Compressor 55Kw Electronic 35% Energy Saving





3 Electric motor

Only electric motors from well-known manufacturers of protection class IP54/IP23 are used in our Direct-driven Screw compressor. As a standard, the drive motors are monitored both thermally (via the thermistor of the motor) as well as electronically(overload protection via the frequency inverter).



Loss Free 75 Hp Rotary Screw Air Compressor 55Kw Electronic 35% Energy Saving







55KW air cooling compressor parameters



ITEM UNIT MODEL
LGCD-55
Free air delivery m3/min 10.80 10.00 9.00 7.80
Max. working pressure MPa 0.7 0.8 1.0 1.3
Compressor type   Oil inject screw compressor
Cooling type   Air cooling
Driven type   Direct driven
Inlet status Temperature ℃ ≤45
Pressure MPa Atmospheric pressure
Relative humidity   ≤90%
Noise Level dB(A) ≤76
Residual oil content ppm ≤2
Drive rotor speed rpm 2970 2970 2970 2970
Compressed air outlet temperature ℃ Ambient temperature＋10
Cooling air flow m3/hr 10200
Control mode   Intelligent controller
Safety valve set pressure MPa 0.77 0.88 1.10 1.43
Lubricating oil volume L 50
Lubricating oil brand   ROTORCOMP
Compressed air outlet connection   G2
Dimension L mm 1750
W mm 1200
H mm 1500
Net Weight kg 1180
Motor Model   Y2225M-2
Speed rpm 2970
Rated Power KW 55
Service factor   1.2
Protection type   IP23/IP55
Insulation class   F
Startup mode   ʏ-Δ starting
Voltage V 380(Special on request)
Frequency Hz 50(Special on request)
Rated current A 103
Weight of motor kg 387

Loss Free 75 Hp Rotary Screw Air Compressor 55Kw Electronic 35% Energy Saving
Loss Free 75 Hp Rotary Screw Air Compressor 55Kw Electronic 35% Energy Saving
Loss Free 75 Hp Rotary Screw Air Compressor 55Kw Electronic 35% Energy Saving
