Heatless desiccant absorption compressed air dryer for air compressor -40--70℃
Dew point: -40 °C - -70°C
ISO, CE certificated With world-top activated Aluminum & Molecular contents.
8.5m3/min customized 6-10bar pressure with less air consumption.
Features of Regenerated adsorption desiccant air dryer for air compressor :
Capacity: 8.5m3/min Working Pressure: ≤10bar
Max.inlet temp: 45°C
Max Ambient Temp:50°C
Min.Ambient Temp: 5°C
Refrigerant:Activated Aluminum &Molecular Siere
Dew Point: -40°C - -70°C

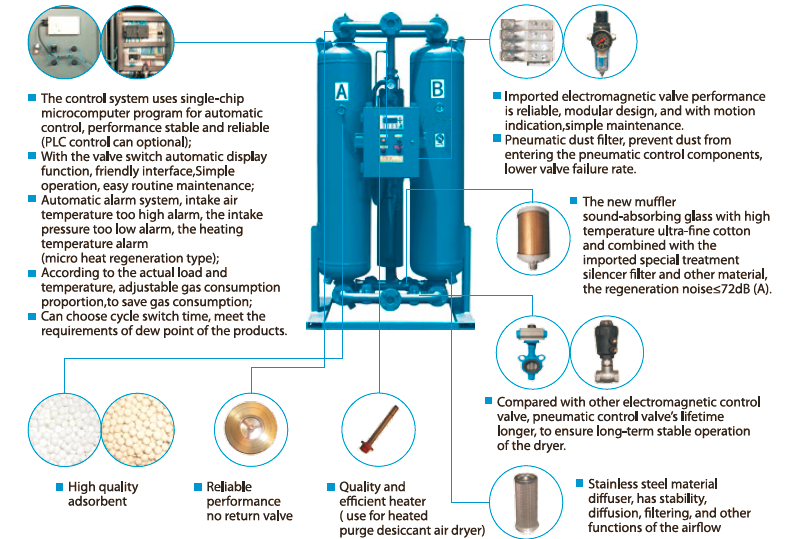

Time Proven Design:
*Rust Prevention: have been treated against corrosion, it does not need to be treated against corrosion and dust again within 10 years on the promise that normal maintenance is ensured.
*Various Valves provides reliable and long service life.
*Vessels have a large filling level of desiccant bed that allows compressed air has enough time to contact with desiccant. That is, more efficient on drying process in the Adsorption Dryer.
*Generously sized silencers ensure efficient noise reduction for the escaping regeneration air.
Ease of Monitoring:
*PLC Control Panel
*Electronic(Automatic)Drain Valve.
Safety Protection Systems for overheat and Systems Alarm and Stop for Errors and Overworking. Expand Machine Life.
*Each valve is controlled individually with a time-delay, which results in overlap-free switch-over without pressure peaks between adsorption and regeneration.
1.High Performance pneumatic Valves
Oil-less pneumatic valves are designed specifically for high temperature applications and feature stainless steel internals and filled PTFE seats. 2.Low wattage heater with high temperature interlock
Low-wattage high incoloy sheathed heater for efficient regeneration.
Heater high temperature with interlock alarm provides continuous monitoring of heater sheath temperature. The heater will de-energize in a high temperature condition.
3.High Efficiency Centrifugal Blower
Reliable, quiet generation of purge air. Intake filter is positioned for convenient access to facilitate filter element changeout.
4.High performanced desiccants
Double fixed bed layers, respectively filled with high performanced activated alumina and molecular sieve.
5.Advanced PLC controller
PLC Controlling system executes and monitors all dryer functions, 7’’ Touch screen panel displays dryer status.
6.Dew Point Display
Highly accurate ceramic dew point sensor and high dew point alarm.
7.Pressure Gauges
Stainless steel gauges, located on each tower, provide visual indication of pressure during drying and regeneration processes.
8.Large Purge Mufflers
Large mufflers minimize noise and include built-in safety relief valves.
| Model | Cpacity
m3/min | Power Kw | Voltage
V/50Hz | connection | Dimension
L×W×H | Weight Kg |
| | | | | | | |
| HDR-75XF | 8.5 | 1.85 | 380 | G1.5 | 1400×600×2000 | 510 |
| | | | | | | |
| 1. The above parameters and color are designed according to customer needs, the parameters are for reference only, the final parameters of the drawings shall prevail; |
| 2. According to user requirements and needs, to join way: air/water cooling, oil content, weight, appearance size according to the need to design, to the final order and the technical agreement shall prevail; |
| 3. 1 year warranty |
Product Tags:
|
|

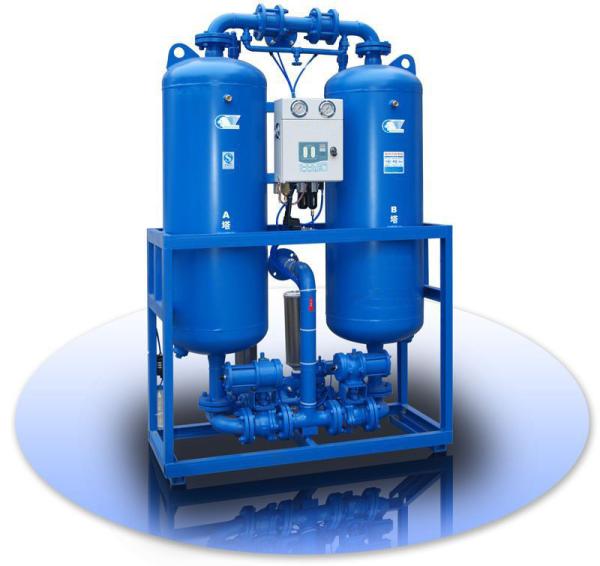

Heatless Desiccant Air Treatment Plant Images
|
